Descriptions:

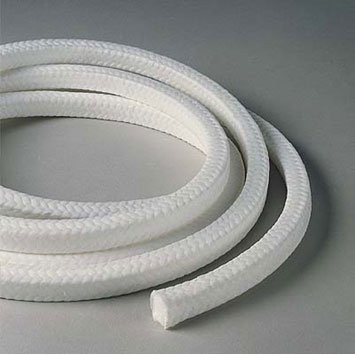

Ceramic fibre packing is braided with high quality ceramic fiber without ant impregnant. Ceramic packing is braided without any flammability component.This kind of gland Packing is static sealing packing.Ceramic fibre packing has many excellent capabilities of high strength and high temperature resistant, better insulation,incombustible,etc,It can be impregnated with graphite latex.This kind of graphite ceramic fibre packing is used in sealing of high temperature and high pressure.It can be reinforced with stainless steel or glass fibre.This will make much improvement to Ceramic Fibre Packing.
Squre braided from ceramic fiber impregnated with qraphite. Normal for valves and static seal under supper high temperature. Ceramic fiber is standout replacement of asbestos. All of ceramic products are made of good quality ceramic fiber, it has many excellent capabilities of high temperature resistance, low density and low thermal conductivity, better insulation and incombustible etc. As a static seal for vessels, heaters, manhole, lids, covers, thermal insulation and fire-proof of pipes etc.
Specifications:
| Item | Value | Unit |
| Pressure | 20 | MPa |
| Dimension | :3x3 to 50x50(or as required size ) | mm |
Characteristics:
1,Low maintenance, easy to control
2,Excellent capabilities of high strength and high temperature resistance
3,Economical packing
Technical data:
| Temperature Range | -100 up to +850 ℃ atmosphere; | |
|
Process |
Rotating | 10 bar |
| Reciprocating | 15 bar | |
| Static | 50 bar | |
| Shaft Speed | 10m/s in rotary | |
| PH | 5~9 | |
| Density | 0.75~1.25 g/cm3 | |
Applications
Universal packing, for rotary, reciprocating pumps, in ship building and domestic fresh water pumps.
Suited for chemical neutral and resistant to water, steam, hot air, oils, etc.
