Fiberglass Braided Gland Packing For Pumps Industrial Gland packing Good Sealing Properties
Material:

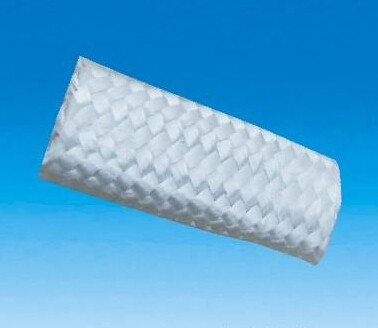

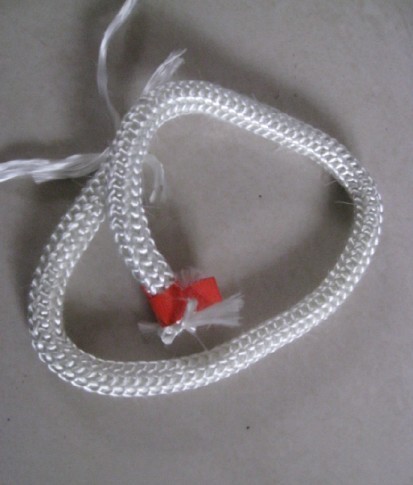

Fiberglass Braided Packing is diagonally braided from textured glass-fiber yarn, impregnated through out with PTFE emulsion, silicone-free break in lubricant. It is very dense and supple packing, good chemical resistance.
Application areas:
Fiberglass Braided Packing is used in Rotary and reciprocating pumps, valves, mixers and agitators,pulp & paper,peroleum,chemical and food industry, sugar mills and water treatment plants.
Application media:
Fiberglass Braided Packingis suitable for water, steam, solvents, oils, most chemicals, mild acids and lyes, etc.
Not suitable for:
Concentrated acids and lyes, oxygen.
Application Data:
| Rotary | Reciprocating | Valve | |
| Pressure:bar | 15 | 100 | 150 |
| Speed:m/s | 8 | 2 | 1.5 |
| pH Range | 3 - 12 | ||
| Temp. °C | -40 to +280 | ||
Stock Dimension: (Max. size: 4” square)
| mm sq. | 4 | 5 | 6 | 7 | 8 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 18 | 19 | 20 | 22 | 24 | 25 | |
| M/kg.abt. | 46 | 30 | 21 | 16 | 12.0 | 7.7 | 6.45 | 5.4 | 4.6 | 3.98 | 3.5 | 3.10 | 2.44 | 2.19 | 2.01 | 1.66 | 1.40 | 1.29 | |
| Inch sq | 5/32 | 3/16 | 1/4 | 5/16 | 3/8 | 7/16 | 1/2 | 9/16 | 5/8 | 11/16 | 3/4 | 13/16 | 7/8 | 15/16 | 1 | ||||
| Ft/Lb.abt | 68.6 | 48 | 27 | 17.8 | 12.6 | 9.43 | 7.2 | 5.68 | 4.67 | 3.85 | 3.27 | 2.82 | 2.43 | 2.11 | 1.86 | ||||
| Packaging | 5kgs per coil | 5kgs per coil | 5kgs per coil | ||||||||||||||||
Note: 1/8", 3/16"(Less than 7mm)are square braided construction.
(other Packaging on your request)
